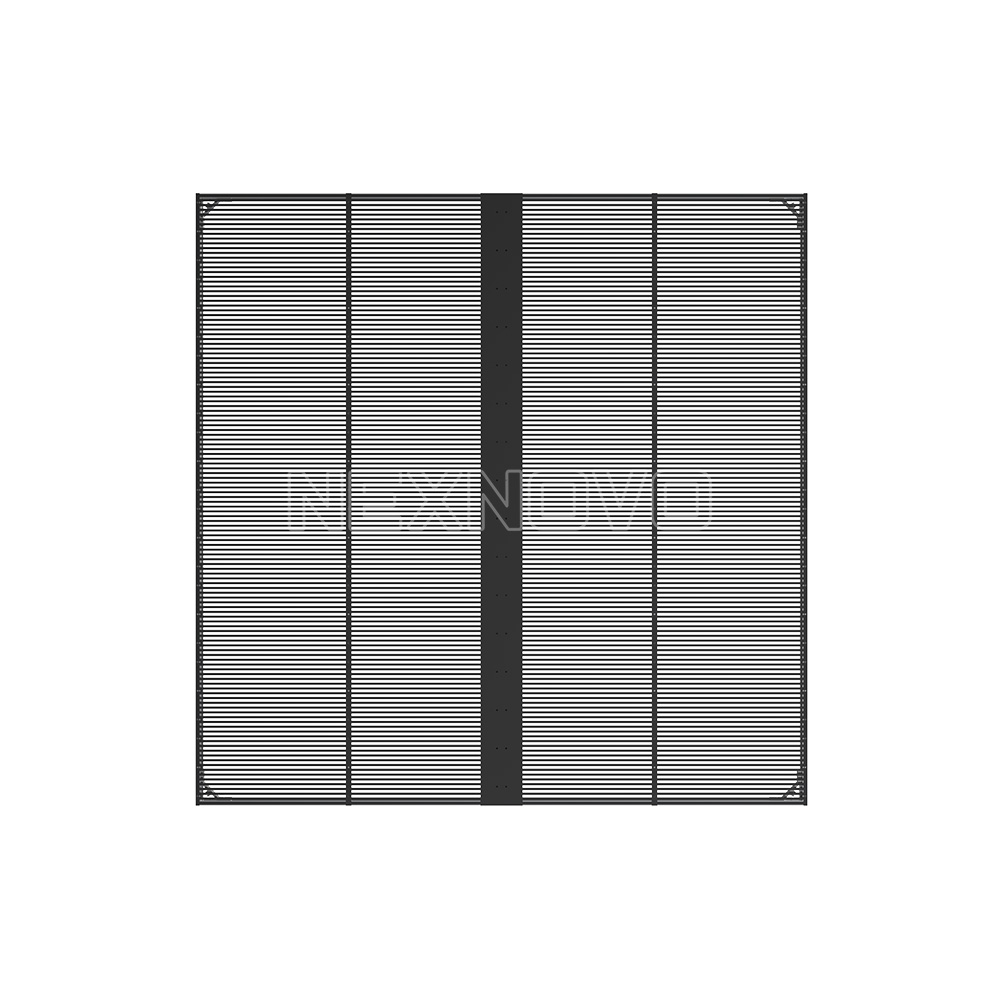

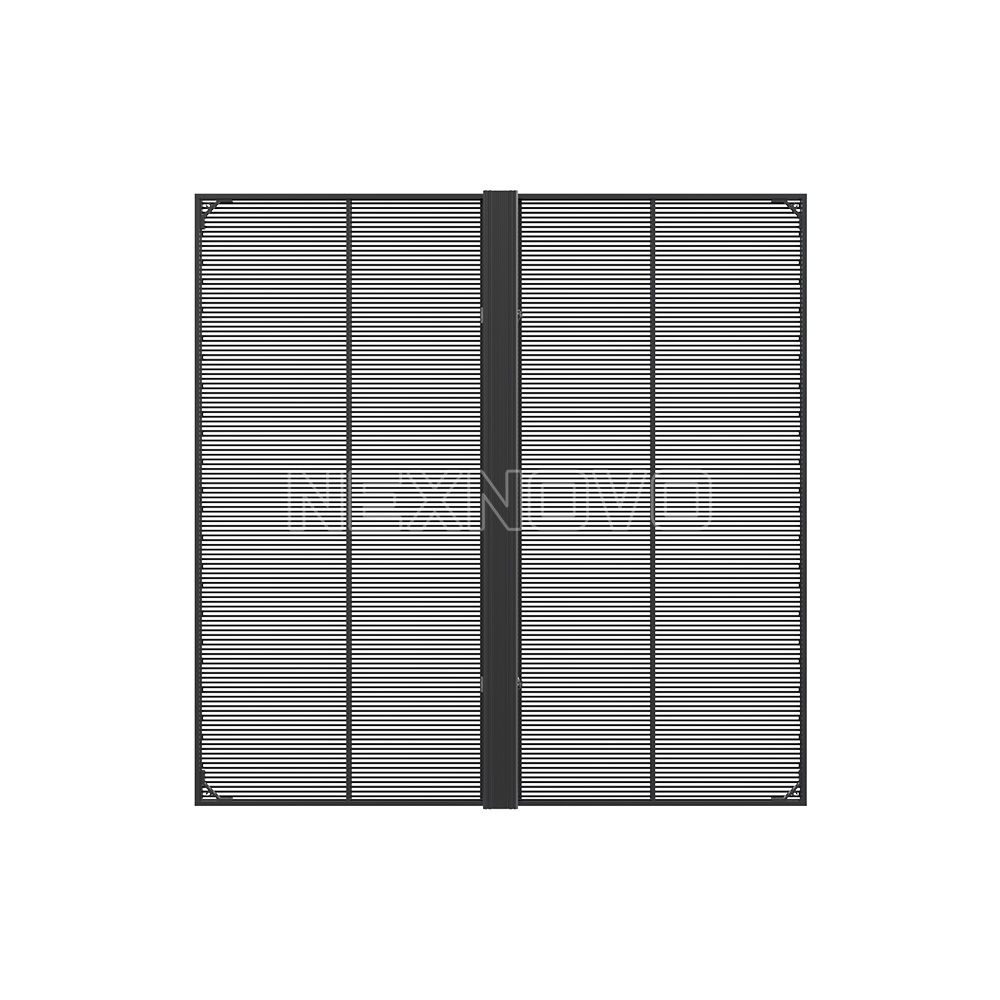

XF Series Transparent LED display

NEXNOVO LED transparent screens (XF series) is with LED lamps mounted on the surface of the PCB by using National Star lamp beads with consistent brightness and color. The standard cabinet also supports customization. It’s easy to install by modular design. Suitable for indoor fixed installation, widely used in glass windows, atriums, sightseeing elevators etc.

High resolution


Modular design

Easy installation



A decade of resourcefulness birthed a sleek and unadorned cabinet design.

High strength / light weight / corrosion resistance / good decoration / long life span

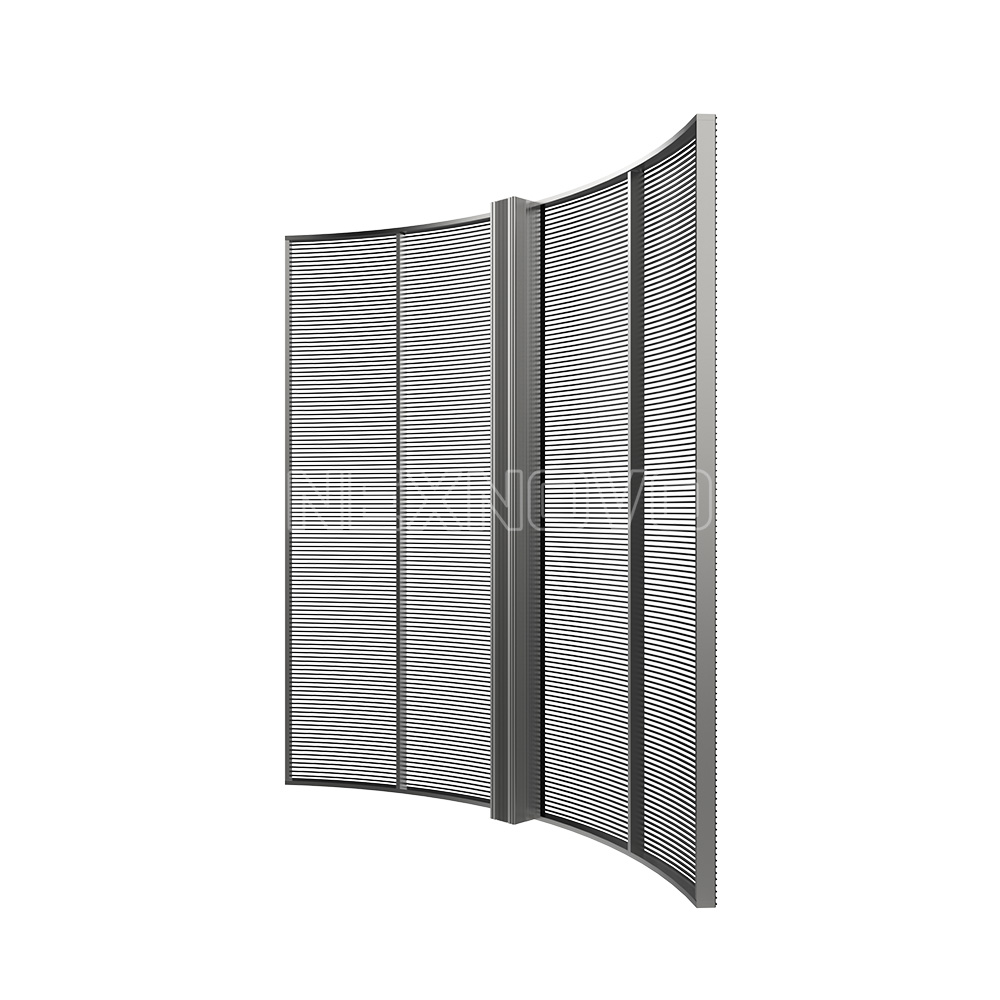

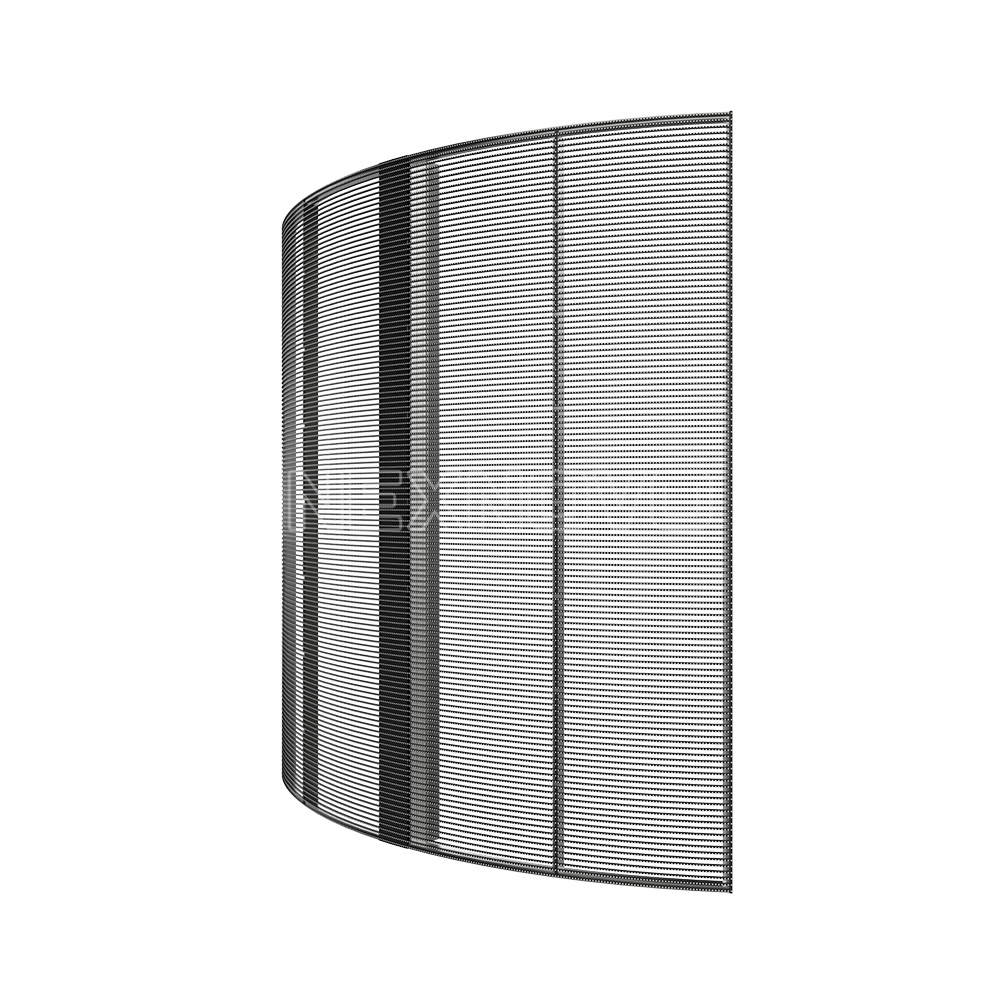

Curved cabinets,
more applications





High resolution
True color

14bit gray scale
≥1920Hz refresh rate
4500CD/㎡ brightness






More applications

Max 1/2 cabinet width reduction



Easy installation, labor-saving and worry-free

The display can be fixed up and down or hung
Built-in power supplier, integrated modules, modules are connected by connecting blocks, easy installation.



Model XF3.9
LED SMD1921 SMD1921
Brightness(cd/㎡) 2000-2500 4000-4500
Pixel Pitch 3.9x7.8
Cabinet size(wxh)mm 1000x1000
Cabinet Resolution 256x128
Transparency 54% 62%
Max.Power(W/㎡) 400 800
Avg.Power(W/㎡) 120 240
KG/㎡ 7KG
