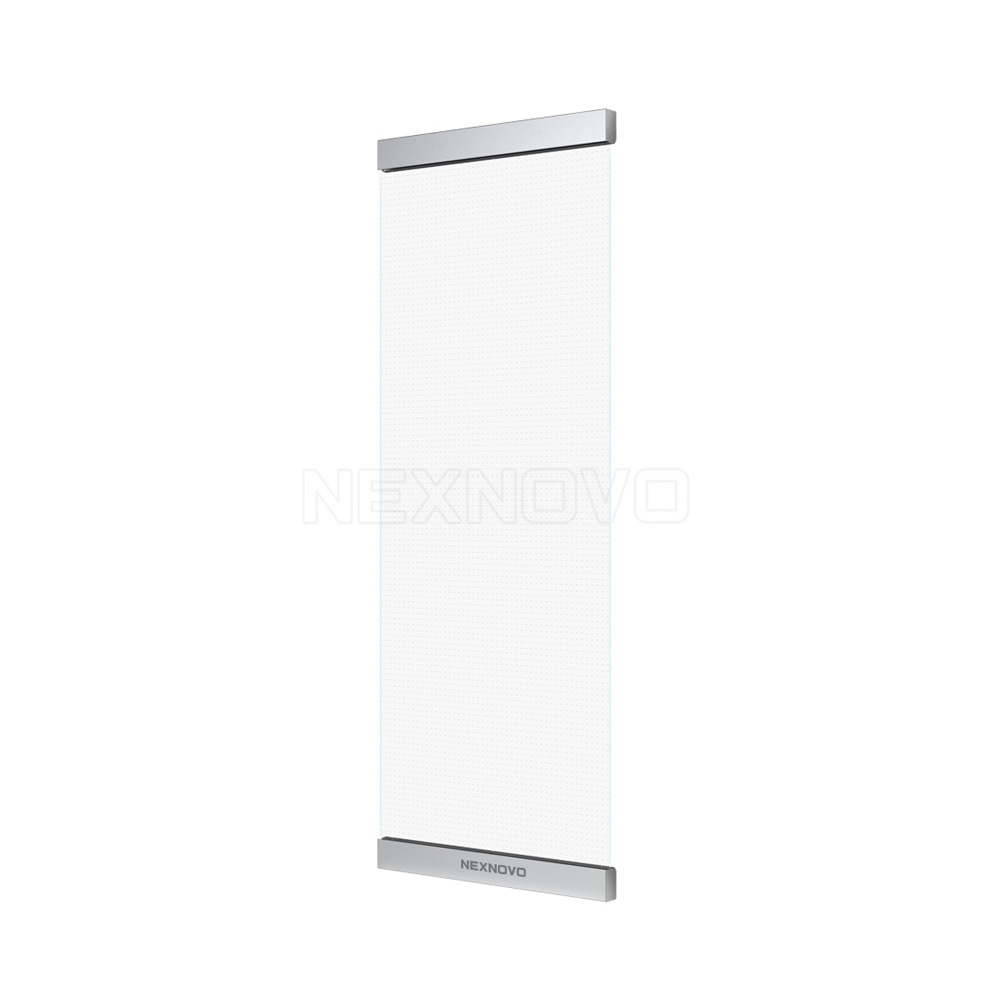

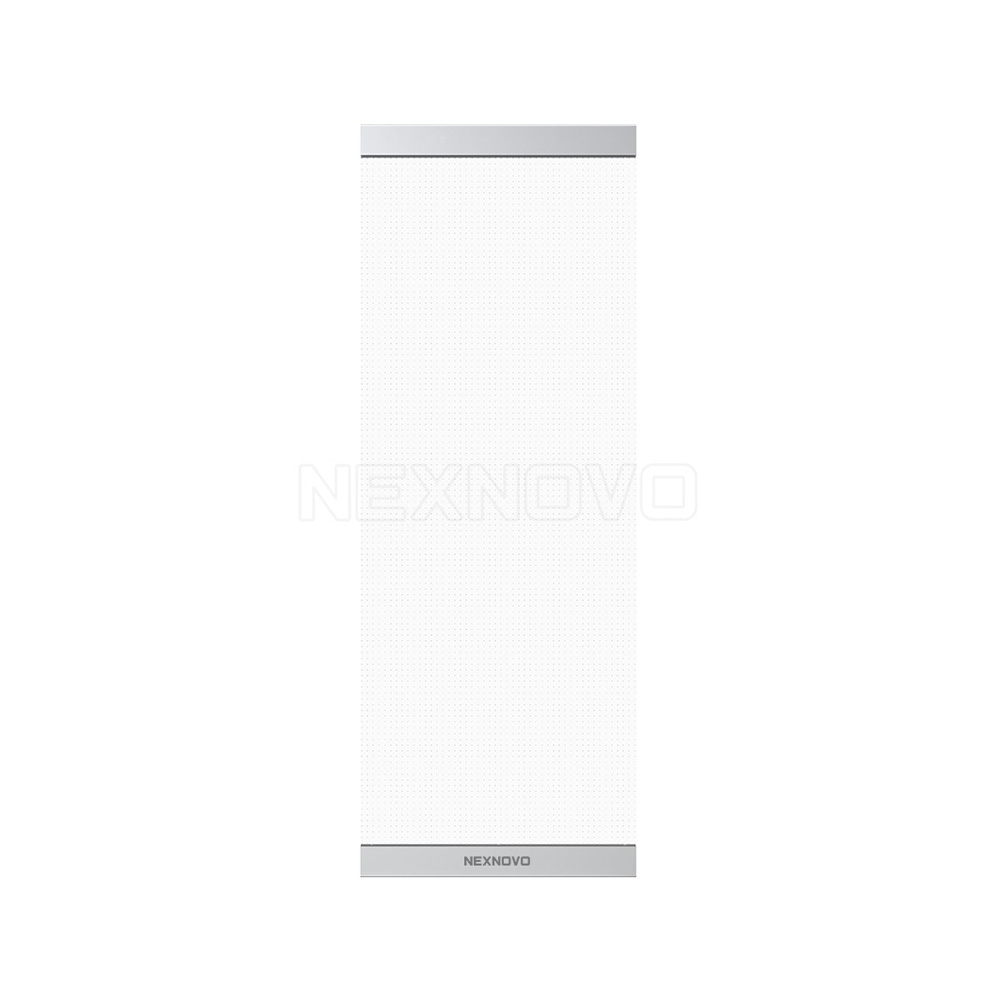

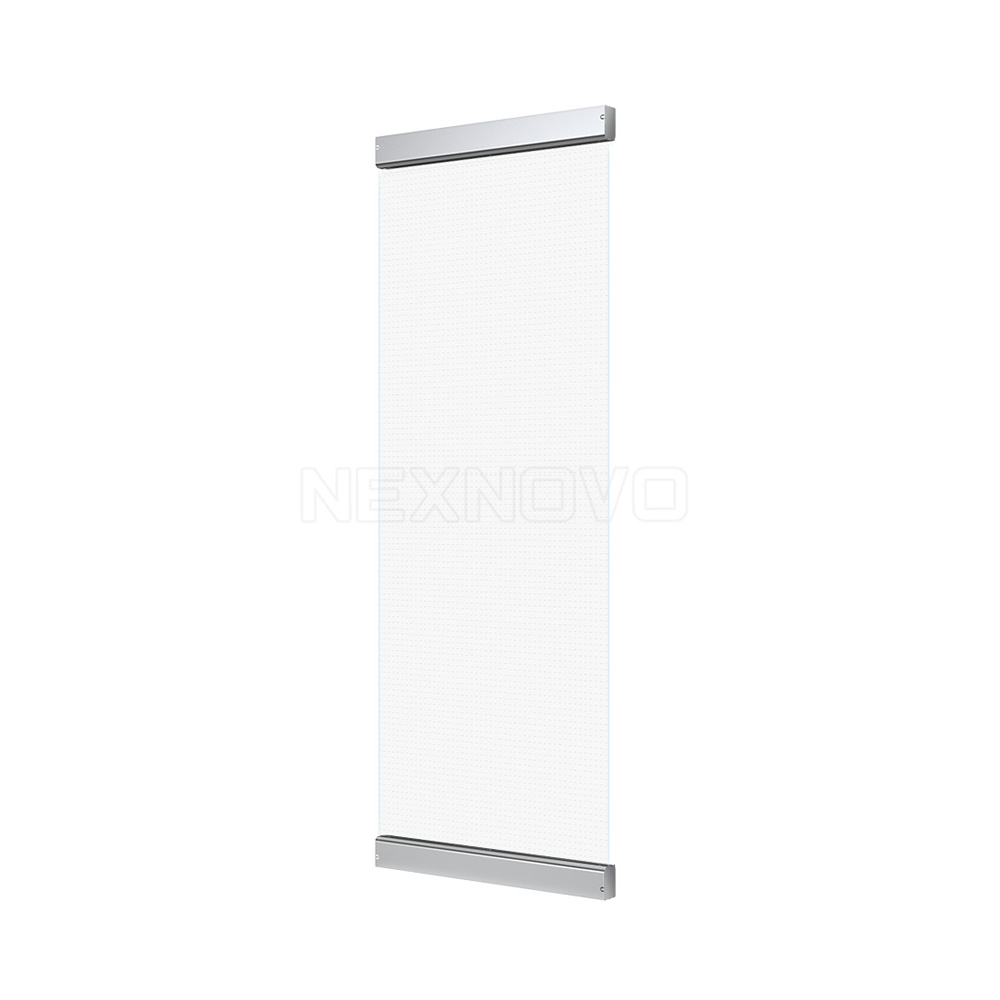

NSN Series Glass LED

The NSN Glass LED series is a premium solution for high-end window advertising. It uses high-density industrial tempered glass as the base material, combined with their patented integrated-IC technology and nano-film circuit. With its versatility, it's ideal for various settings, such as glass windows, interior and exterior partitions, landscape lighting, transport stations, and showrooms.

The NSN series' light and transparent design creates a visually open space with a flow of light and color, offering exceptional transparency.

High transparency

seamless assembling

frameless design

modular design

energy saving

stable performance

High resolution

Delicate and vivid color, high-definition display for showroom

High transparency & high brightness

With more than 92% transparency, the screen is barely visible from 3-meter away.
Brightness reach 5000nits which meets brightness requirements in direct sunlight conditions.

Frameless design
Single panel maximum width or height can reach 3 meters.

Frameless keel structure design, simple and beautiful
Truly large areas of frameless glass assemble together for imaging
The hidden power and control system render the display visually lighter and more streamlined, enhancing its agility.

Core technology-self-developed LED chip

LED chip integrates into LED bead,
which simplifies the circuit design,
and guarantees extremely high transparency.

Two-way drive has multiple safeguards

Drive-IN LED supports bidirectional drive.
Backing up data when a single point malfunctions,
signal self-starting and seamless switching,
Drive-IN LED, Drive-IN LED supports bidirectional drive.

An immersive

interactive experience　Create interactive experiences with interactive devices.

waterproof design, high security

Glass dry laminating process complies with building regulations.
laminated glass has stable performance and high strengthen

IP65 protection grade,
Easily cope with severe weather such as high temperature, rain and snow,
High safety

modular installation, all-in-one solutions

Modular design for convenient installation and maintenance,width 1000mm/1188mm
height 2000mm/2250mm/2500mm/2750mm/3000mm

Specification

Model	LED	Pixel Pitch（mm）	Pixel/㎡	Standard panel size (mm)	Panel display size(mm)	Panel resolution	Brightness（cd/㎡）	Thickness(mm)
NSN10	NEX2121	W10.42XH10.42	96x96=9216	W1000*H2226	W1000*H2000	96x192	3500~4000	18.04
				W1000*H2476	W1000*H2250	96x216
				W1000*H2726	W1000*H2500	96x240
				W1000*H2976	W1000*H2750	96x264
				W1000*H3226	W1000*H3000	96x288
				W1188*H2226	W1188*H2000	114x192
				W1188*H2476	W1188*H2250	114x216
				W1188*H2726	W1188*H2500	114x240
				W1188*H2976	W1188*H2750	114x264	3000~3500
NSN8	NEX2121	W8.3XH8.3	120x120=14400	W1000*H2226	W1000*H2000	120x240	3500~4000	18.04
				W1000*H2476	W1000*H2250	120x270
				W1000*H2726	W1000*H2500	120x300
				W1000*H2976	W1000*H2750	120x330
				W1000*H3226	W1000*H3000	120x360

Related case

Novo-Glass application in Ocean Culture City of Hainan

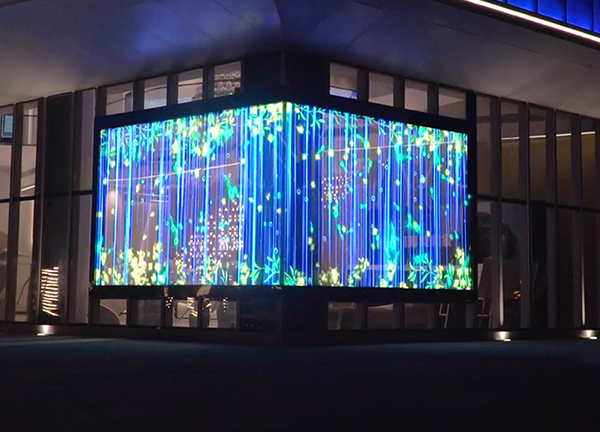

Building Facade

Retail Window

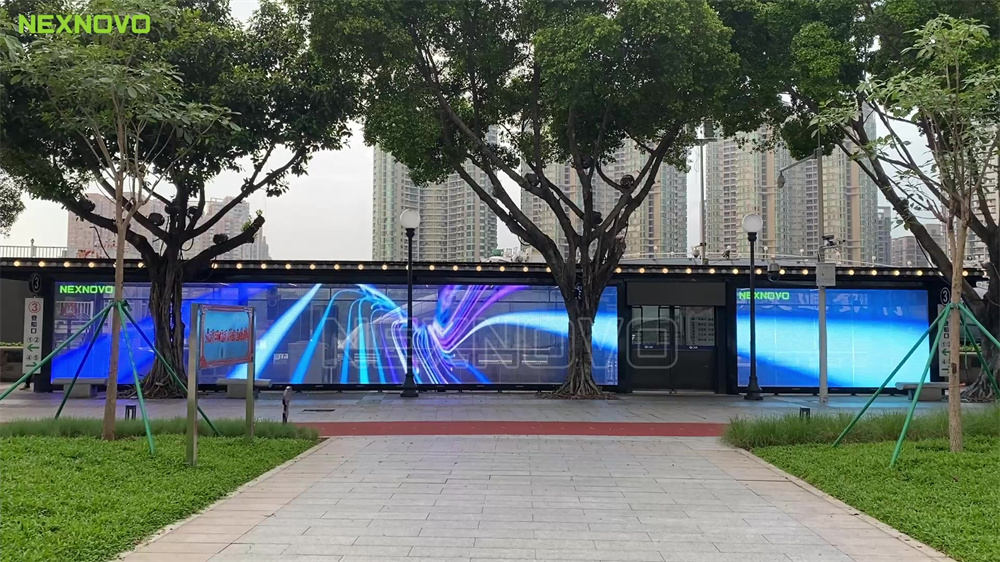

Commercial Hub

Landscape Lighting

Advertisement Media

Balustrade Overpass

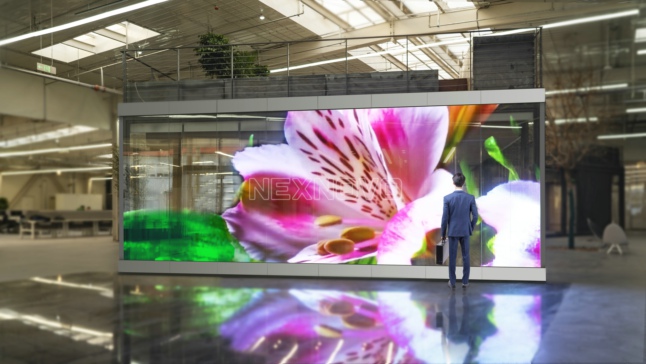

Exhibition & Showroom

Sliding Door

Irregular Creativity
