NFG Serie
Ultra Thin Glass LED Film
Bubble-free adhesive application, safe and durable

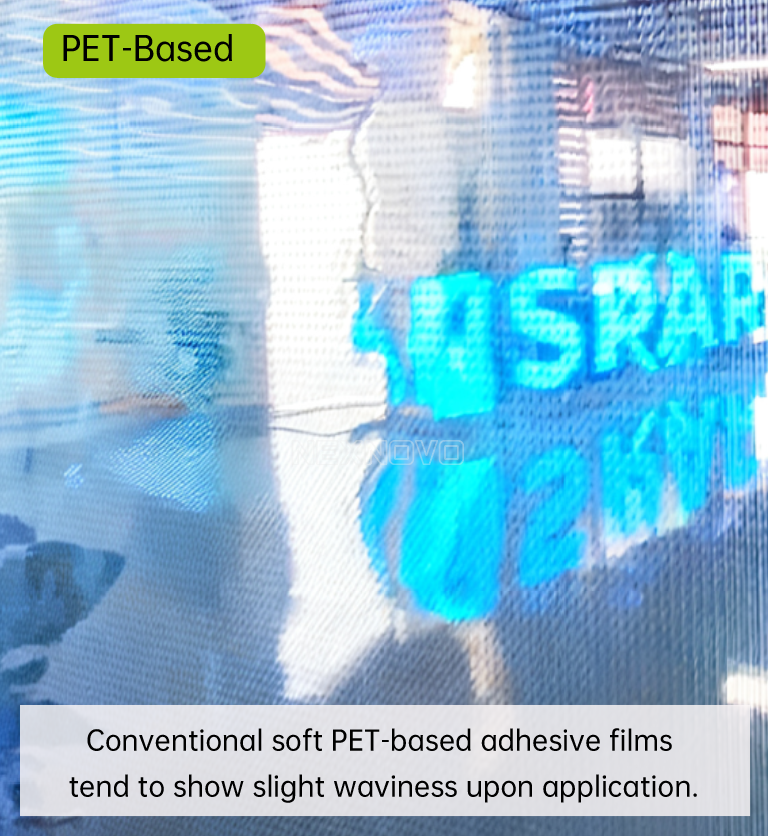

NEXNOVO ultra clear adhesive transparent LED glass NFG series is new-generation display solution for premium showcase and high-security environments, engineered to overcome weakness of conventional holographic screen and PET adhesive film. It features smallest pitch 3.9mm for exceptional display authenticity and color consistency, lamination with 1mm super transparent glass eliminates warping, curling edge and bubbling issues. Its display remains consistently flat at high angled transparency. Certified with V0 flame retardation, it complies with public security standards eliminating fire hazard posed by PET-based solution. Drill-free stick on system applies for various large glass facade and commercial showcases.

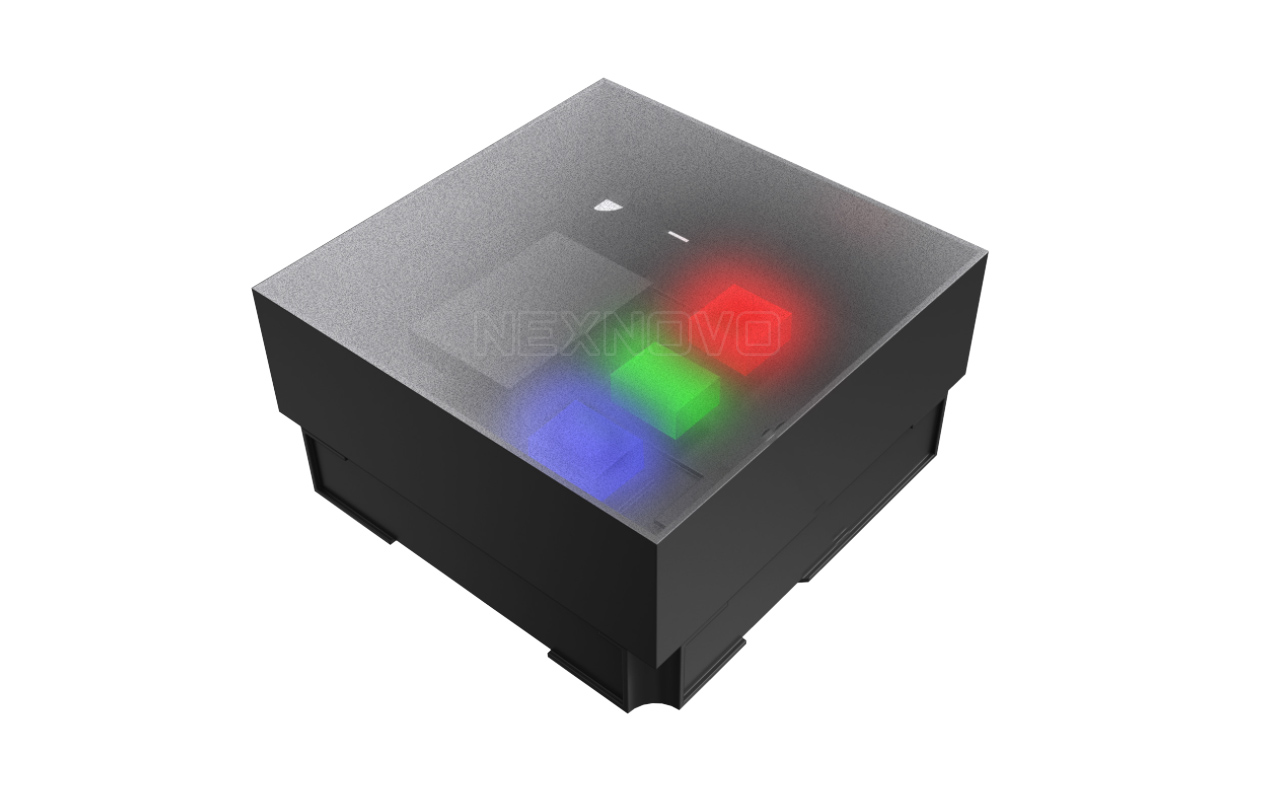

Black-encapsulated LEDs collect light more efficiently with reduced light leakage, enhancing image color contrast.

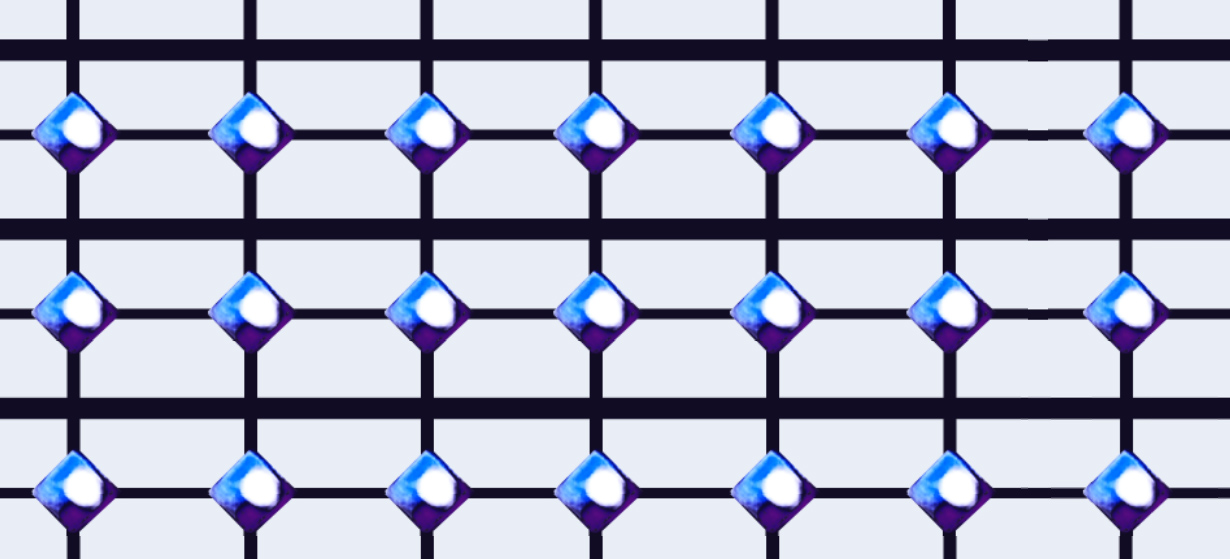

An extra-thick conductive circuit ensures strong conductivity and minimizes voltage drop.
Additionally, the dark-coated circuit reduces ambient light reflection, contributing to higher image contrast.
Pixel pitches from 3.9mm to 5.9mm are ideal for commercial advertising and atmospheric video presentations in retail settings.

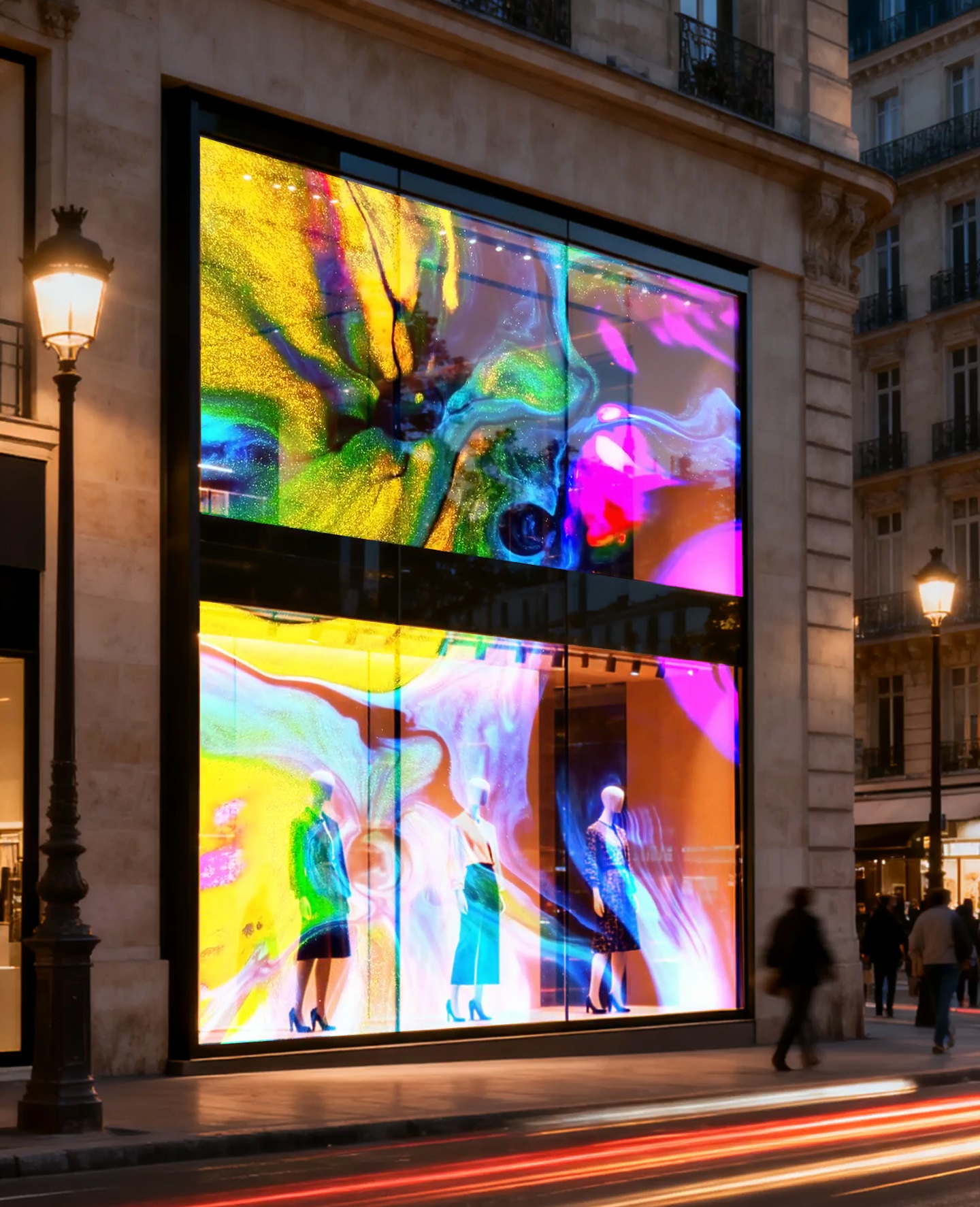

Suitable displays for Windows, Glass Facades, Partition & More

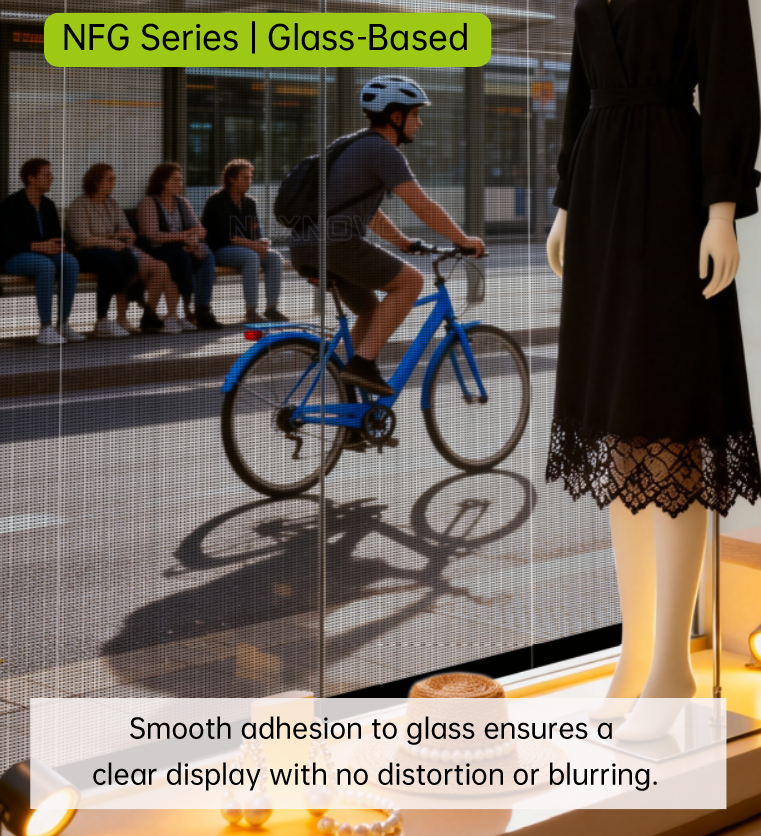

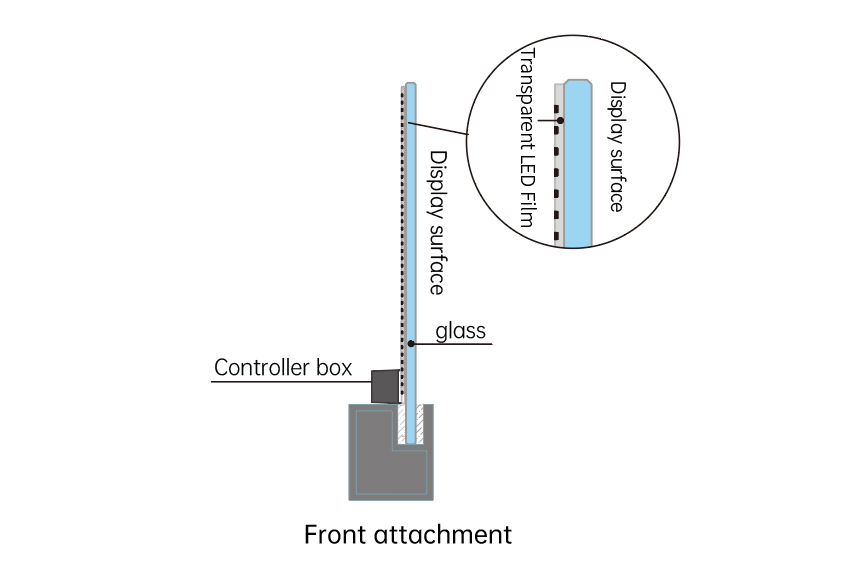

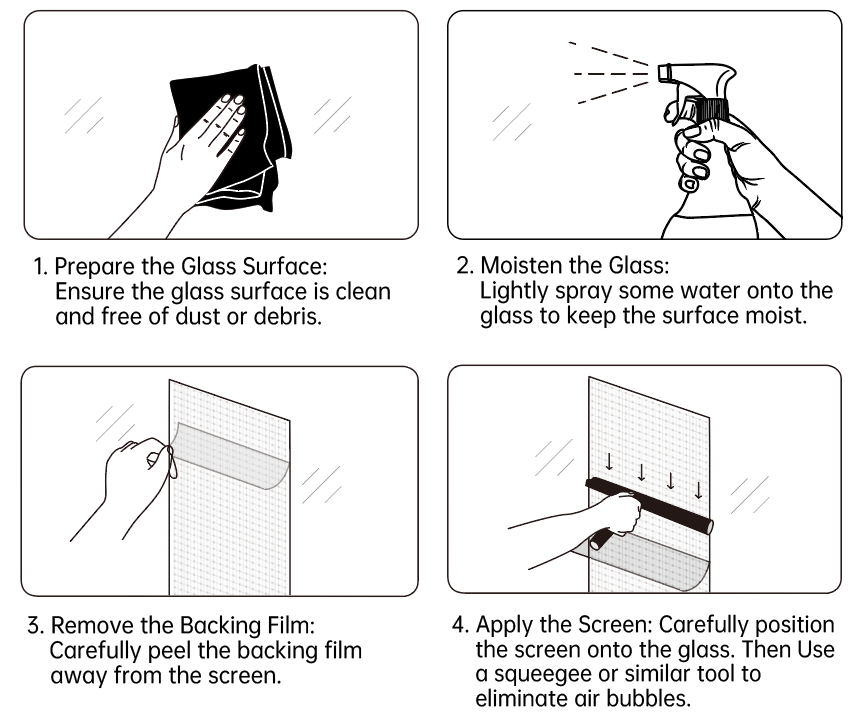

Peel-and-stick application with strong adhesion and glass rigidity delivers a flush fit on all sides without edge warping.

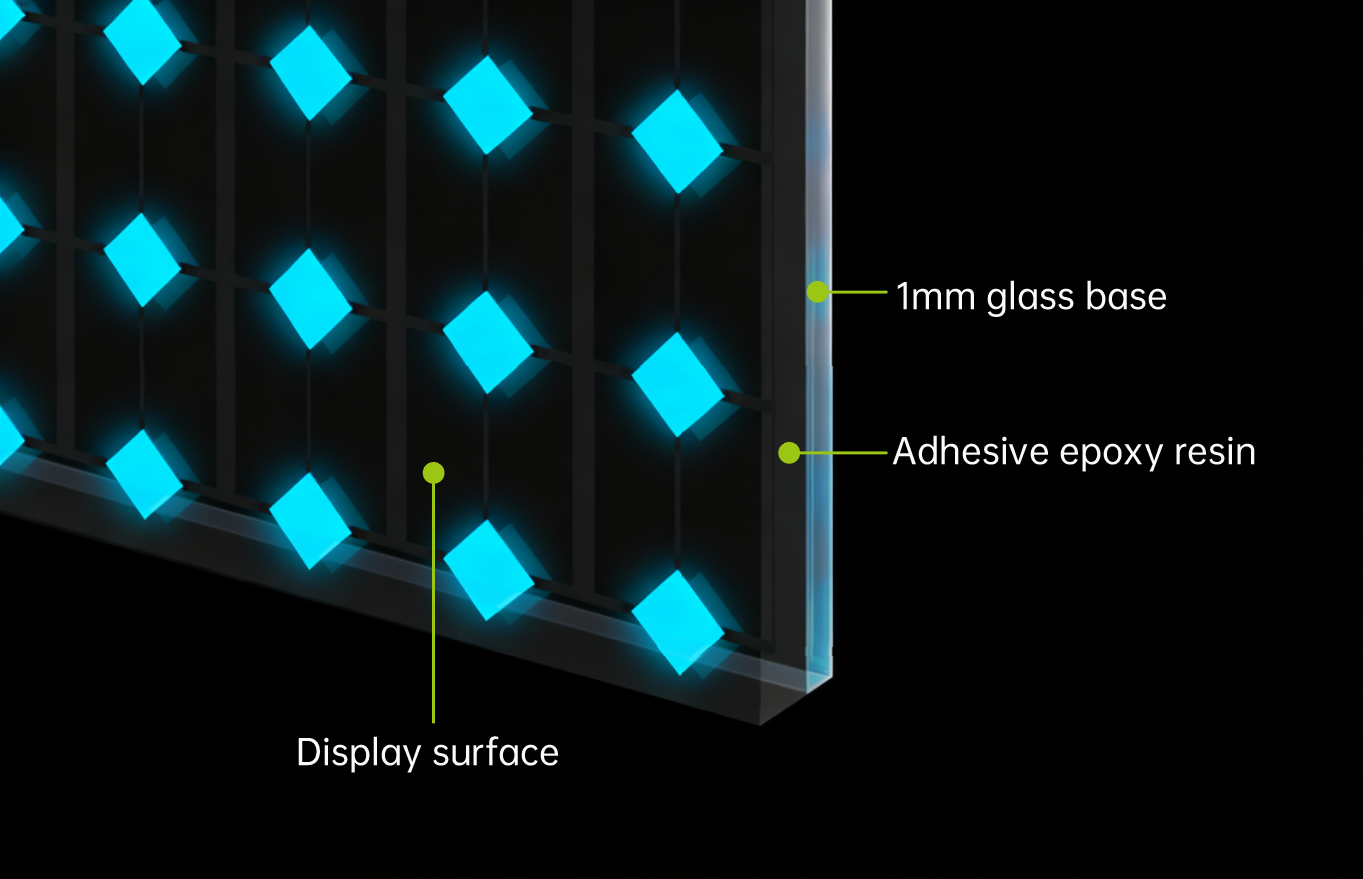

Featuring a 1mm glass base, this design eliminates warping problems typical of PET-based film and facilitates quick installation.

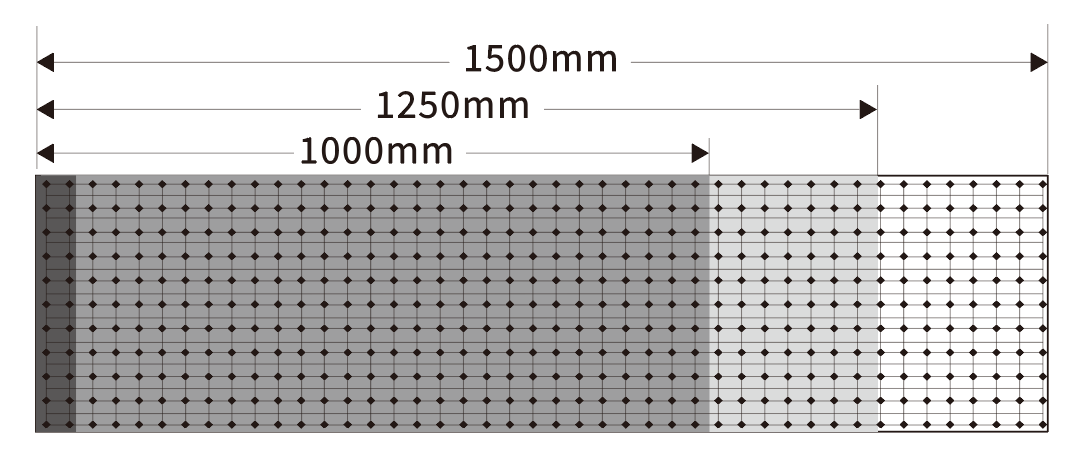

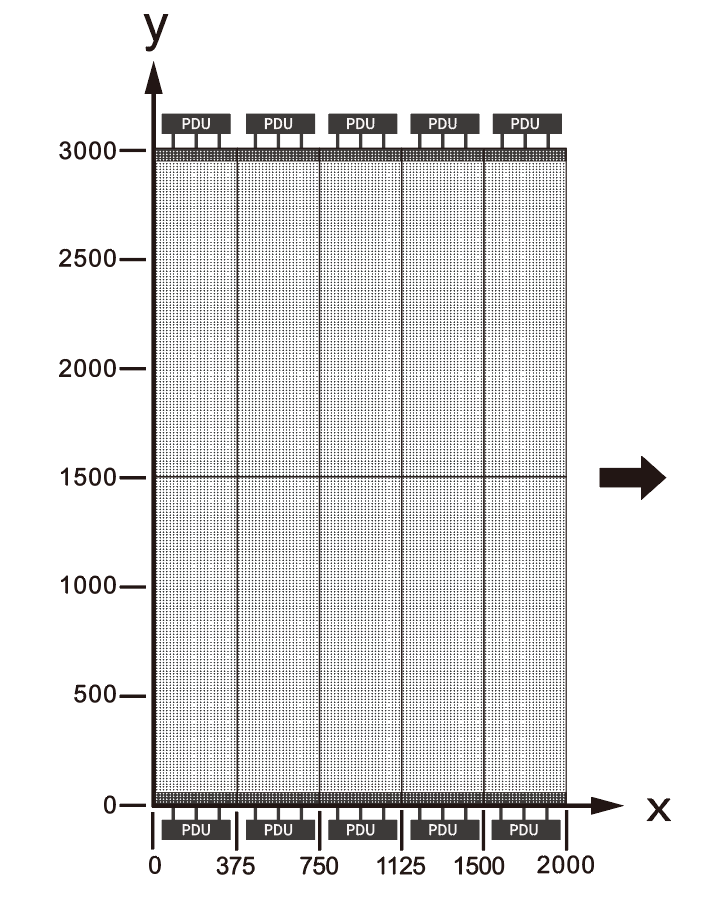

The maximum single module size is 375mm x 1500mm.

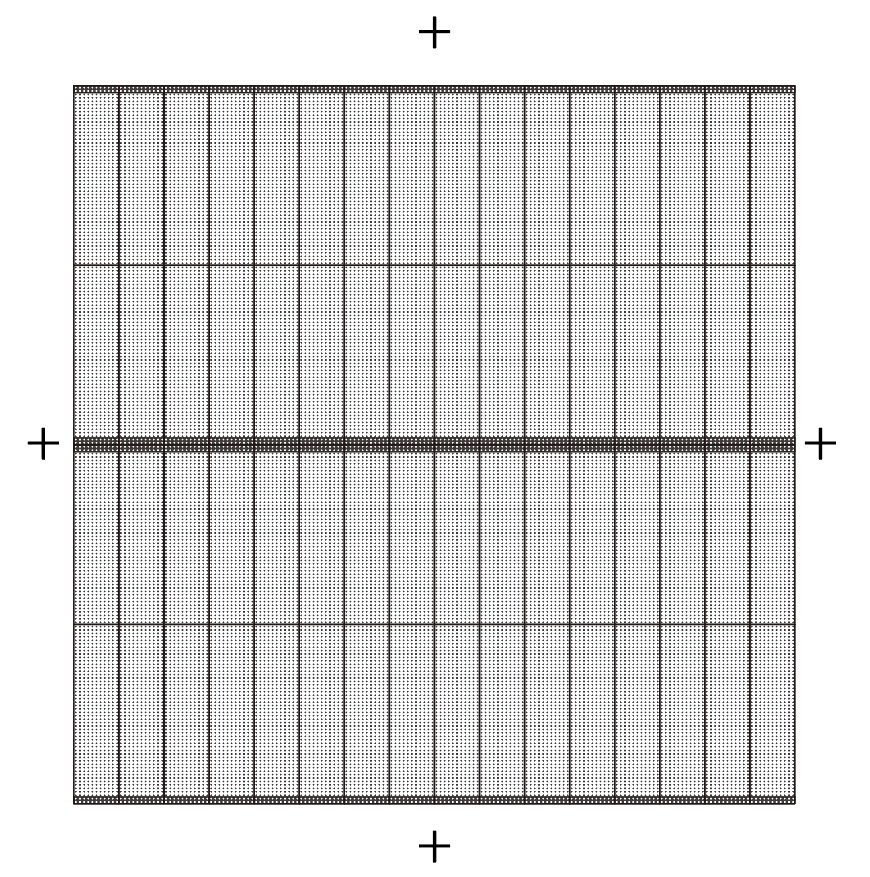

By joining Module A and Module B in opposite directions, the display can reach up to 3000mm in Y-axis, with no size limitation in the X-axis.

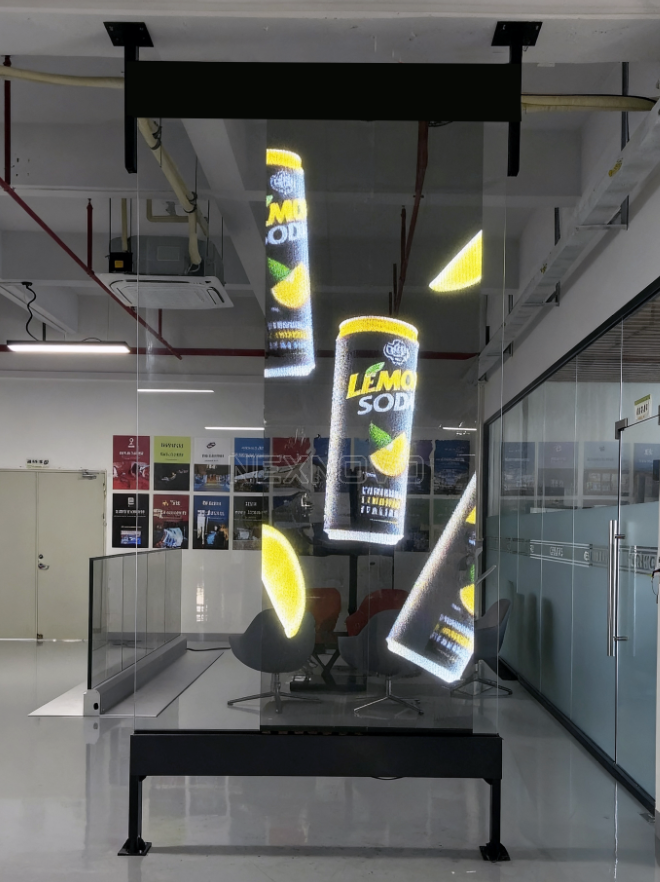

Large-scale installation For H>3m Applications
It uses a highly flexible, transparent, yellowing-resistant resin Even the P5.9 model achieves an impressive perceived transparency of 90% without compromising indoor natural lighting.
Glass replaces PET and exposes inorganic glass in the back, providing excellent flame and fire resistance.
The back surface can be wiped clean just like normal glass after installation
It is as thin as 3.5mm and weighs merely 4.5 kg / sqm

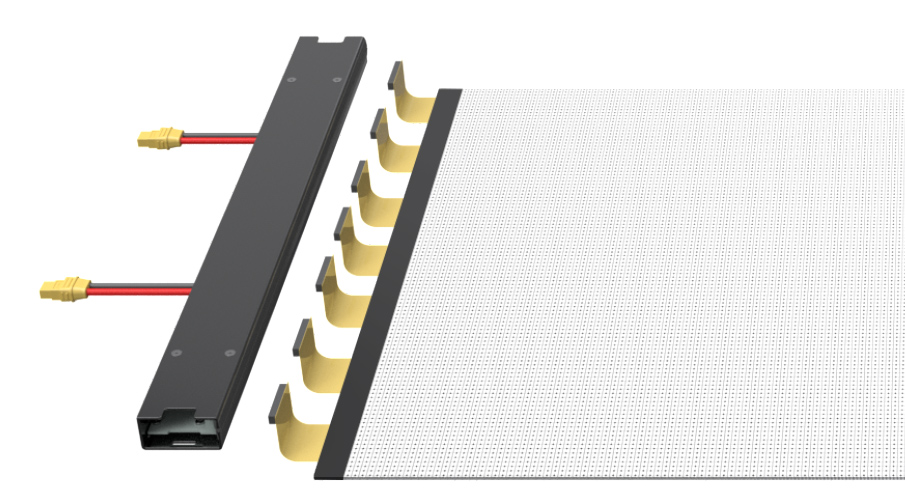

Detachable power supply increases reliability of device operation.

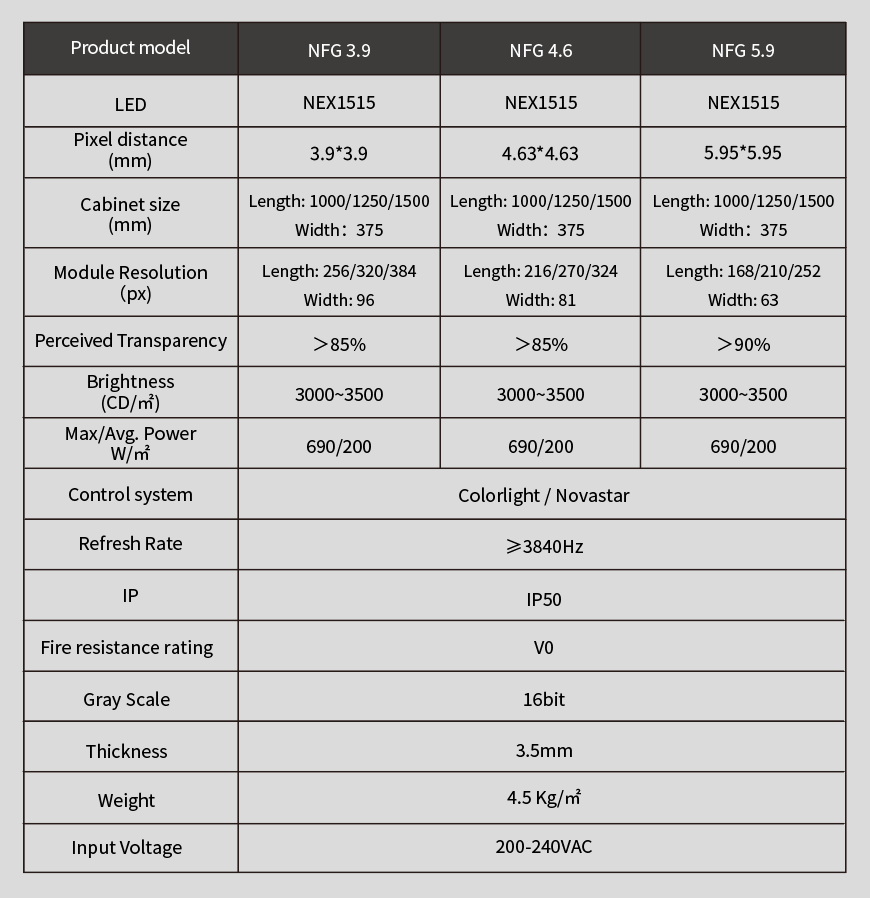

Specifications
NEXNOVO is committed to the ongoing research and development of high-quality transparent LED products. The standard specifications listed are intended for design reference only. For detailed project parameters and customization requirements, please consult the official project solutions provided by NEXNOVO.
